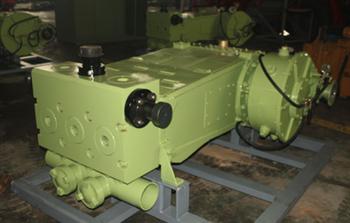

600HP Triplex Plunger Pump
Click to enlarge
600HP Triplex Plunger Pump600HP Triplex Plunger Pump600HP Triplex Plunger Pump600HP Triplex Plunger Pump600HP Triplex Plunger Pump600HP Triplex Plunger Pump600HP Triplex Plunger Pump600HP Triplex Plunger Pump600HP Triplex Plunger Pump600HP Triplex Plunger Pump

600HP Triplex Plunger Pump

600HP triplex plunger pump is a horizontal single-action reciprocating pump. Its maximum rated input power is 600 HP. This positive displacement pump is widely used for intermittent workover services such as acidizing, cementing, fracturing, well killing and gravel filling. Its main components are power end assemblies, fluid end assemblies and reducing gearbox assemblies. With large power, high pressure and light weight, the 600HP triplex plunger pump is suitable for hydraulic cementing of oil and gas well, and for the small size fracturing engineering.

Model Range600 Pump (Long)
Application2. Two sizes of pump body are designed to for installation with different plungers so as to achieve different pressure…

Overview

The 600HP triplex plunger pump (600 Pump Long) is rated at 447 KW maximum brake horsepower with a maximum rod load of 445000 N and a 152.4 mm stroke. At 450 rpm water circle it delivers from 104 L/min with a 3-inch plunger up to 235 L/min with a 4-1/2-inch plunger, and the 1626 × 1366 × 607 mm package fits standard fracturing skids and truck-mounted pumpers.

Features

1. Reducing gearbox assembly can be installed at the right side or the left side of the pump. And there are 17 installations for the reducing gearbox, which allows this 600HP triplex plunger pump to suit various applications.

2. Two sizes of pump body are designed to for installation with different plungers so as to achieve different pressure and displacement.

3. Customer can choose different packing assembly, valve assembly and discharge flange when purchasing our 600HP triplex plunger pumps. More options can meet different requirements and pump special fluids under different conditions.

4. Pump weight will not change largely subject to different plunger size and other options. Pump weight error will remain within ±5% of total weight.

Parameters of 600HP Triplex Plunger Pumps

Model

600 Pump (Long)

600 Pump (Short)

Rated Max. Brake Horsepower

447 KW

447 KW

Maximum Rod Load:

445000 N

445000 N

Stroke Length

152.4 mm

152.4 mm

Max. SpecificWater Circle

450 rpm

450 rpm

Drive Ratio

4.61:1

4.61:1

Dimension

1626 × 1366 ×607 mm

1292 × 1366 ×607 mm

Weight

2492 kg

2155 kg

Performance of 600HP Triplex Plunger Pumps

SpecificWater Circle

50

120

200

300

450

Plunger Diameter

Displacement

(L/min)

Pressure (Mpa)

Displacement

(L/min)

Pressure (Mpa)

Displacement

(L/min)

Pressure (Mpa)

Displacement

(L/min)

Pressure (Mpa)

Displacement

(L/min)

Pressure (Mpa)

3”

104

97.5

250

97.2

110

58.3

625

38.9

938

25.9

3-1/2”

142

71.7

341

70

150

42.8

851

28.6

1277

19

4”

185

54.9

445

54.6

196

32.8

1112

21.9

1668

14.6

4-1/2”

235

43.4

563

43.2

248

25.9

1407

17.3

2111

11.5

Frequently Asked Questions

What is the rated power of the 600HP triplex plunger pump?

The 600HP triplex plunger pump (600 Pump Long) has a rated maximum brake horsepower of 447 KW (about 600 HP). It delivers a maximum rod load of 445000 N with a stroke length of 152.4 mm and a drive ratio of 4.61:1.

What is the displacement at different plunger diameters?

At 450 rpm maximum water circle, displacement rises with plunger diameter: 104 L/min at 3 inches, 142 L/min at 3-1/2 inches, 185 L/min at 4 inches and 235 L/min at 4-1/2 inches. Choose the plunger size to match the required treating rate and pressure.

What are the dimensions and weight of the 600HP pump?

The 600 Pump (Long) measures 1626 mm × 1366 mm × 607 mm and weighs 2492 kg. Two sizes of pump body are available for installation with different plunger configurations.

How is the 600HP triplex plunger pump applied in fracturing?

This positive displacement pump is widely used for intermittent oilfield operations such as acidizing, fracturing, well killing and cementing. It can be installed on fracturing skids or truck-mounted pumpers as part of a complete Petrokh fracturing fleet.
