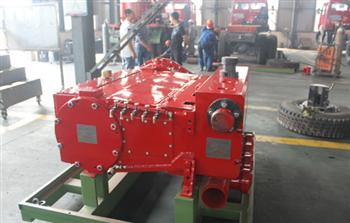

1000HP Triple Plunger Reciprocating Pump
3ZB-750 or 1000HP triple plunger reciprocating pump is of positive-displacement type and widely utilized in intermittent oilfield operations such as acidizing, fracturing and well killing. Its maximum rated brake power is 750 KW (1000 HP), and the stroke is203.2 mm(8”). Plunger diameter is4”or 4-1/2”such as to meet different requirements for pressure and displacement. All kinds of plungers (with different diameters) are equipped with the same power end.
| Model Range | 1000 |
Overview
The 3ZB-750 / 1000HP triple plunger reciprocating pump is a horizontal positive displacement pump used on frac pumpers and cementing units. With 750 KW input power and a 203.2 mm stroke, it delivers from 391 to 695 L/min depending on plunger size, and it is widely utilized in intermittent oilfield operations such as acidizing, fracturing and well killing.
Parameters of 3ZB-750/1000HP Triple Plunger Reciprocating Pump
|
Pump Type |
1000 |
|
Max. Input Power |
750 KW |
|
Max. Load of Conrod |
592000 N |
|
Stroke |
203.2 |
|
Max. Specific Water Cycle |
300 rpm |
|
Drive Ratio |
5.043:1 |
|
Dimension |
2012 × 1410 ×1016 mm |
|
Weight |
3856 kg |
Performance of 3ZB-750/1000HP Triple Plunger Reciprocating Pump
|
SpecificWater Circle(rpm) |
100 |
150 |
200 |
250 |
300 |
|||||
|
Plunger Diameter |
Displacement (L/min) |
Pressure (Mpa) |
Displacement (L/min) |
Pressure (Mpa) |
Displacement (L/min) |
Pressure (Mpa) |
Displacement (L/min) |
Pressure (Mpa) |
Displacement (L/min) |
Pressure (Mpa) |
|
3-3/4” |
391 |
80 |
652 |
62.1 |
869 |
46.6 |
1086 |
37.3 |
1303 |
31.1 |
|
4” |
445 |
70 |
741 |
54.7 |
988 |
41 |
1236 |
32.8 |
1483 |
27.3 |
|
4-1/2” |
563 |
55 |
938 |
43.2 |
1251 |
32.4 |
1564 |
25.9 |
1876 |
21.6 |
|
5” |
695 |
45 |
1158 |
35 |
1544 |
26.2 |
1931 |
21 |
2317 |
17.5 |
Frequently Asked Questions
What is the 3ZB-750 / 1000HP triple plunger reciprocating pump?
The Petrokh 3ZB-750 or 1000HP triple plunger reciprocating pump is of the positive-displacement type and is widely utilized in intermittent oilfield operations such as acidizing, fracturing and well killing.
What are the specifications of the 1000HP reciprocating pump?
The pump has a maximum input power of 750 KW, maximum load of conrod of 592000 N, 203.2 mm stroke, 300 rpm maximum specific water cycle and 5.043:1 drive ratio. The unit measures 2012 × 1410 × 1016 mm and weighs 3856 kg.
What displacement does each plunger size deliver?
With a 3-3/4" plunger the pump delivers 391 L/min, with 4" it delivers 445 L/min, with 4-1/2" it delivers 563 L/min, and with 5" it delivers 695 L/min.
Why is a triple plunger reciprocating pump used in oilfield service?
The horizontal reciprocating design gives smooth, high-pressure positive displacement pumping with low pulsation, making it suitable for acidizing, fracturing and well killing where continuous rated pressure is required.
