1800HP Frac Pump Skid
Click to enlarge
1800HP Frac Pump Skid1800HP Frac Pump Skid1800HP Frac Pump Skid1800HP Frac Pump Skid1800HP Frac Pump Skid1800HP Frac Pump Skid1800HP Frac Pump Skid

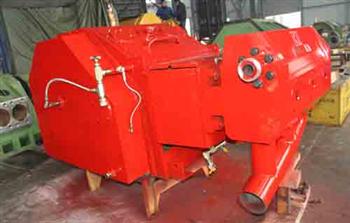

1800HP Frac Pump Skid

Our 1800HP frac pump skid refers to triple plunger pump for oil/gas/petroleum well stimulation. For this horizontal positive-displacement reciprocating pump, the maximum rated brake power is 1342 KW (1800 HP) and the stroke is203.2 mm(8”). Besides, three plunger diameters are optional:4”, 4-1/2”and5”. In this way, it is suitable for different requirements of pressure and displacement. Although the plunger diameters are different, its power end is the same to each other. 1800HP frac pump skid is widely applicable for intermittent oilfield operations, such as acidizing, fracturing, well killing, and so on.

Model Range1800 HP

Overview

The 1800HP frac pump skid packages a 1342 KW triple plunger pump on a compact skid frame for direct deployment at the wellsite. With a 1000 kN conrod load rating, 203.2 mm stroke and 330 rpm speed, it delivers 371 to 579 L/min depending on plunger size for oil, gas and petroleum well stimulation.

Parameters

Pump Type

1800 HP

Max. Input Power

1342KW

Max. Load of Conrod

1000 kN

Stroke

203.2 mm

Max. Specific Water Cycle

330 rpm

Drive Ratio

6.353:1

Dimension

2400 × 1657 ×1120 mm

Weight

5398 kg

Performance of 1800HP Frac Pump Skid

SpecificWater Circle(rpm)

75

115

200

300

330

Plunger Diameter

Displacement

(L/min)

Pressure (Mpa)

Displacement

(L/min)

Pressure (Mpa)

Displacement

(L/min)

Pressure (Mpa)

Displacement

(L/min)

Pressure (Mpa)

Displacement

(L/min)

Pressure (Mpa)

4”

371

123.5

568

123.5

988

73.6

1483

49

1631

44.6

4-1/2”

469

97.6

719

97.6

1251

58

1876

38.7

2064

35.1

5”

579

79

889

79

1544

47

2317

31.3

2548

28.4

Frequently Asked Questions

What is the 1800HP frac pump skid?

The 1800HP frac pump skid refers to a triple plunger pump for oil, gas and petroleum well stimulation. For this horizontal positive-displacement reciprocating pump, the maximum rated brake power is 1342 KW (1800 HP).

What are the specifications of the 1800HP skid?

The pump has a maximum load of conrod of 1000 kN, 203.2 mm stroke, 330 rpm maximum specific water cycle and 6.353:1 drive ratio. The skid measures 2400 × 1657 × 1120 mm and weighs 5398 kg.

What displacement does the 1800HP pump deliver?

With a 4" plunger the pump delivers 371 L/min, with 4-1/2" it delivers 469 L/min, and with 5" it delivers 579 L/min.

Why choose a skid-mounted frac pump?

The skid package places the pump and power end directly at the wellsite without a truck chassis, which suits pad layouts, offshore decks and operations where the pump is crane-lifted into position.
