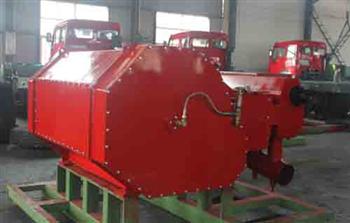

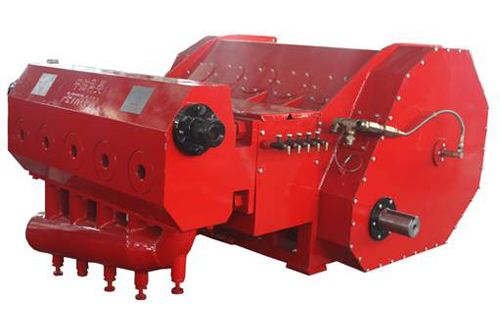

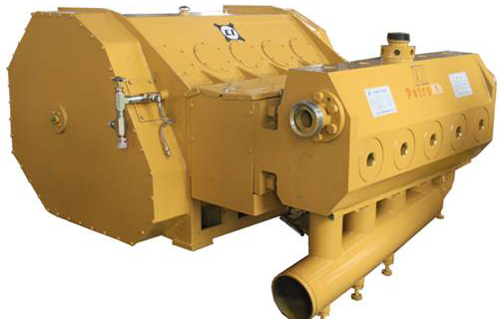

2500HP Quintuple Pump Unit
2500HP quintuple pump unit is a horizontal pump designed to fulfill oilfield operations in harsh pumping conditions. The reciprocating positive displacement pumps are widely used for intermittent workovers, oil well fracturing, acidizing, well killing, gravel filling, etc. Its maximum rated BHP is 1866 KW (2500 HP) and the stroke length is203.2 mm(8”). Plunger diameters range from 3-3/4”to 6-3/4”, while all the 2500HP pumps adopt the same model of power end. In the 2500HP quintuple pump unit, 20 alloy-steel pull rods are used to connect the fluid end with power end. When the fluid end is demounted, these rods are retained at the power end. Plunders and conrods are jointed with clamps, which makes dismantlement and maintenance for fluid end more convenient.
Overview
The 2500HP quintuple pump unit is a horizontal reciprocating positive displacement pump built for harsh oilfield pumping conditions. With 1866 KW rated brake horsepower, an 8" stroke and plunger options from 3-3/4" to 5", it delivers from 802 to 1427 L/min for intermittent workovers and high-rate oil well fracturing.
Parameters of 2500HP Quintuple Pump Unit
|
Max. BHP |
1866kW (2500 HP) |
|
Max. Load of Conrod |
855 kN (192325 lbf) |
|
Stroke |
203.2 mm (8") |
|
Max. SpecificWater Circle |
330 rpm |
|
Gear Ratio |
6.353 : 1 |
|
Dimension |
2199 × 1980 ×1113 mm |
|
Length × Width × Height |
(86.6" × 78" × 43.8") |
|
Weight |
6760 kg (14903 lbs) |
Performance of 2500HP Quintuple Pump Unit
|
SpecificWater Circle(rpm) |
115 |
150 |
200 |
250 |
330 |
|||||
|
Plunger Diameter |
Displacement (L/min) |
Pressure (Mpa) |
Displacement (L/min) |
Pressure (Mpa) |
Displacement (L/min) |
Pressure (Mpa) |
Displacement (L/min) |
Pressure (Mpa) |
Displacement (L/min) |
Pressure (Mpa) |
|
3- 3/4” |
802 |
120 |
1086 |
92.6 |
1446 |
69.6 |
1809 |
55.6 |
2385 |
42.2 |
|
4” |
912 |
105.6 |
1234 |
81.6 |
1643 |
61.2 |
2055 |
49 |
2710 |
37.1 |
|
4-1/2” |
1154 |
83.4 |
1563 |
64.3 |
2082 |
48.3 |
2604 |
38.6 |
3437 |
29.2 |
|
5” |
1427 |
67.5 |
1930 |
52.1 |
2574 |
39.1 |
3217 |
31.3 |
4247 |
23.7 |
Frequently Asked Questions
What is the 2500HP quintuple pump unit?
The Petrokh 2500HP quintuple pump unit is a horizontal pump designed to fulfill oilfield operations in harsh pumping conditions. The reciprocating positive displacement pumps are widely used for intermittent workovers and oil well fracturing.
What are the specifications of the 2500HP quintuple unit?
The unit has a maximum brake horsepower of 1866 KW (2500 HP), maximum load of conrod of 855 kN (192325 lbf), 203.2 mm (8") stroke, 330 rpm maximum specific water circle and 6.353:1 gear ratio. It measures 2199 × 1980 × 1113 mm and weighs 6760 kg.
What displacement does each plunger size deliver?
With a 3-3/4" plunger the pump delivers 802 L/min, with 4" it delivers 912 L/min, with 4-1/2" it delivers 1154 L/min, and with 5" it delivers 1427 L/min.
Why choose a quintuple pump for fracturing?
The five-throw design gives larger displacement with smaller pressure fluctuation than a triplex pump at the same power, which is important for high-rate fracturing treatments and reduces shock on the treating iron.
