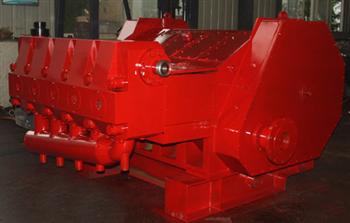

2800HP Large-Power Quintuplex Plunger Pump
Click to enlarge
2800HP Large-Power Quintuplex Plunger Pump2800HP Large-Power Quintuplex Plunger Pump2800HP Large-Power Quintuplex Plunger Pump2800HP Large-Power Quintuplex Plunger Pump2800HP Large-Power Quintuplex Plunger Pump

2800HP Large-Power Quintuplex Plunger Pump

For 2800HP large-power quintuplex plunger pump, the rated BHP (brake horse power) is 2080 KW (2800 HP), the stroke is203.2 mm(8”). Besides, the plunger diameter is optional from 3-3/4”to5”so that it can fulfill multifarious requirements for pressure and displacement. Although the 2800HP pumps are of different fluid ends, they are equipped with the same power end. This horizontal positive-placement single-action pump is widely used in intermittent oilfield operations, such as acidification, fracturing, well killing, cementing, etc.

Overview

The 2800HP large-power quintuplex plunger pump is the highest-rated member of the Petrokh pump family, with 2080 KW rated brake horsepower and an 8" stroke. Plunger diameters from 3-3/4" to 5" deliver between 723 and 1287 L/min, fulfilling multifarious high-rate fracturing and stimulation duties in large fracturing fleets.

Parameters of 2800HP Large-Power Quintuplex Plunger Pump

Pump Type 2800

Max. Input Power 2088 kW

Max. Load of Conrod 1000 kN

Stroke Length 203.2 mm

Max. Specific Water Circle 330 rpm

Gear Ratio 6.353 : 1

Dimension 2296 × 2310 ×1198 mm

Weight 8900 kg

Performance of 2800HP Large-Power Quintuplex Plunger Pump

SpecificWater Circle(rpm)

115

150

200

250

330

Plunger Diameter

Displacement

(L/min)

Pressure (Mpa)

Displacement

(L/min)

Pressure (Mpa)

Displacement

(L/min)

Pressure (Mpa)

Displacement

(L/min)

Pressure (Mpa)

Displacement

(L/min)

Pressure (Mpa)

3-3/4”

723

137.9

1086

103.1

1446

77.2

1809

61.8

2385

46.8

4”

821

123.4

1234

90.4

1643

67.8

2055

54.3

2710

41.1

4-1/2”

1041

97.5

1563

71.5

2082

53.6

2604

42.9

3437

32.5

5”

1287

79

1930

58

2574

43

3217

35

4247

26.3

Frequently Asked Questions

What is the 2800HP large-power quintuplex plunger pump?

For the 2800HP large-power quintuplex plunger pump, the rated brake horsepower is 2080 KW (2800 HP) and the stroke is 203.2 mm (8"). It is designed for the highest-power pumping duty in fracturing fleets.

What plunger options are available?

The plunger diameter is optional from 3-3/4" to 5". At 3-3/4" the pump delivers 723 L/min, at 4" it delivers 821 L/min, at 4-1/2" it delivers 1041 L/min, and at 5" it delivers 1287 L/min.

What is the speed rating of the 2800HP pump?

The maximum specific water circle is 330 rpm. The combination of the 8" stroke and 330 rpm rating supports high displacement with a moderate rotating speed for reliable power end life.

Why choose a quintuplex configuration at 2800HP?

The five-throw crankshaft layout reduces discharge pulsation compared with a triplex pump at the same power, which protects the treating iron and improves pump packing life in continuous high-rate fracturing.
