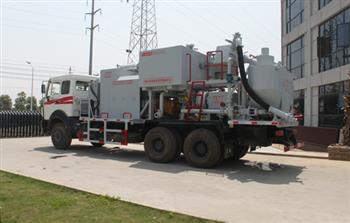

GJC45-21 Cementing Unit
Click to enlarge
GJC45-21 Cementing UnitGJC45-21 Cementing UnitGJC45-21 Cementing UnitGJC45-21 Cementing UnitGJC45-21 Cementing UnitGJC45-21 Cementing UnitGJC45-21 Cementing Unit

GJC45-21 Cementing Unit

GJC45-21 cementing unit is a high-pressure, large discharge and single-pump cementing truck. It adopts ACM-III automatic mixing system and 3ZB-450 triplex plunger pump as main pump. This cementing skid can work alone to perform cementing during hydraulic fracturing.

Model RangeGJC45-21 Cementing Unit
MountingBeiben 6 × 4/6 × 6/ Shacman 6 × 4
ApplicationGJC45-21 cementing unit is mainly used in deep, middle and shallow oil-field. It can complete the fracturing work…

Overview

The GJC45-21 raises the cementing envelope to 45 MPa and 2100 L/min with its 600 plunger pump, powered by a Cummins KT19-C525 or DDC S60 deck engine through a BY400 or Allison OFS4700 gearbox. The higher displacement rating shortens pumping time on large-volume cement jobs while keeping the proven Beiben or Shacman 6 × 4 / 6 × 6 truck configuration.

Working Principle

GJC45-21 cementing unit is equipped with a horizontal single function triplex plunger pump. When the truck is working, the triplex plunger pump is driven by diesel engine above the chassis. When the truck is driving, the triplex plunger pump is driven by diesel engine under the chassis. Truck operation system can be realized by circuit system, hydraulic pressure system, pneumatic system and mechanical transmission system. All controlling of GJC45-21 cementing unit is focused on the console and can be operated by only one person. Besides, operation is automatic, convenient and reliable.

Application

GJC45-21 cementing unit is mainly used in deep, middle and shallow oil-field. It can complete the fracturing work itself, such as self-help mud slurry, self-help mud injection, self-help mud replacement, etc. It can also be used in washing wells, shallow well work, and so on. The greatest strength of the truck is that using only one car can realize the work where well depth is in450m. Applicable temperature rang is between -40 to50 °C

Parameters of GJC45-21 Cementing Skid

Product

GJC45-21 Cementing Unit

Chassis

Beiben 6 × 4/6 × 6/ Shacman 6 × 4

Deck Engine

Cummins KT19-C525/DDC S60

Deck Gearbox

BY400/Allison OFS4700

Plunger Pump

600 Pump

Maximum Pressure

45 MPa

Maximum Displacement

2100 L/min

Injection Centrifugal Pump

4 × 3/2 × 3 (Optional)

Priming Centrifugal Pump

RA 6 × 5/ PN 6 × 5 (Optional)

Water-Supply Centrifugal Pump

4 × 3/ 2 × 3 (Optional)

Weight

22000 kg

Size

≈10250 mm×2500 mm×3850 mm

Frequently Asked Questions

How does the GJC45-21 cementing unit differ from the GJC40-17 model?

Compared with the GJC40-17, the Petrokh GJC45-21 cementing unit raises maximum pressure to 45 MPa and maximum displacement to 2100 L/min. It is built around a 600 plunger pump and a Cummins KT19-C525 or DDC S60 deck engine, giving a higher displacement rating for large-scale cementing jobs.

What is the maximum pressure and displacement of the GJC45-21?

The GJC45-21 cementing unit reaches a maximum pressure of 45 MPa and a maximum displacement of 2100 L/min. The 600 plunger pump is driven through a BY400 or Allison OFS4700 gearbox, with an injection centrifugal pump, priming centrifugal pump and water-supply centrifugal pump available as options.

Which chassis and weight specification apply to the GJC45-21?

The unit is mounted on Beiben 6 × 4 / 6 × 6 or Shacman 6 × 4 chassis with a total weight of about 22000 kg and overall dimensions of approximately 10250 mm × 2500 mm × 3850 mm. It is mainly used in deep, middle and shallow oil fields.

Is the GJC45-21 available as a skid or truck-mounted cementing unit?

The GJC45-21 is a single-pump cementing truck design. Petrokh also supplies skid-mounted cementing units and trailer-mounted cementing skids for customers who need a stationary or towable cementing package.
