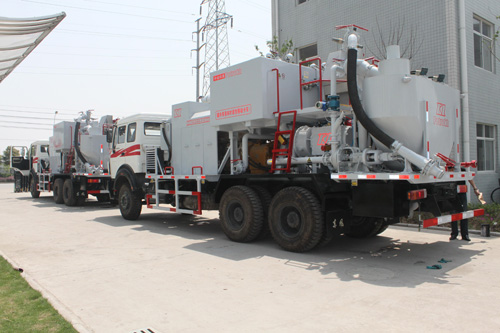

Auto Cement Mixing Unit
Click to enlarge
Auto Cement Mixing UnitAuto Cement Mixing Unit

Auto Cement Mixing Unit

Auto cement mixing unit is a skid or trailer mounted unit that functions to mix highly accurate cement densities during cementing operations. This high-efficiency recirculation mixer is ideal for both onshore and offshore use. Cement mixing system is the most crucial component in cementing operations. The cementing truck can consistently deliver uniform, well-blended cement slurries.

Model RangeGJC45-21 Cementing Unit
MountingBeiben 6 × 4/6 × 6/ Shacman 6 × 4

Overview

The auto cement mixing unit is a recirculation-type mixer available as a skid or trailer package, designed for accurate cement density control in cementing operations. A diesel engine powers the hydraulic system that drives the centrifugal pumps, and a manifold system allows the unit to boost the triplex pumps of a pumping unit, making the cement mixing system the most crucial component of the cementing operation.

Features of Auto Cement Mixing Unit

1. Diesel Engine to Provide Power to the Hydraulic System

2. Hydraulic System to Operate the Centrifugal Pumps

3. A Manifold System to Allow for the System to Boost the Triplex Pumps of a Pumping Unit

4. CAM™ Continuous Automatic Mixing System

5. User friendly Operation Control Console

6. Density Control-Automatic and Manual Hydraulic

7. High Energy Mixer

8. Built-in Pre-Job System Check

9. Built-in Manual Simulator

10. Built-in Data Recording

Typical Auto Cement Mixing Unit Product

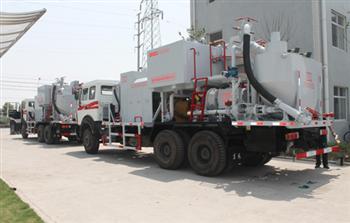

GJC45-21 Auto Cement Mixing Equipment


Auto Cement Mixing Unit

Parameters of Auto Cement Mixing Unit

Product

GJC45-21 Cementing Unit

Chassis

Beiben 6 × 4/6 × 6/ Shacman 6 × 4

Deck Engine

Cummins KT19-C525/DDC S60

Deck Gearbox

BY400/Allison OFS4700

Plunger Pump

600 Pump

Maximum Pressure

45 MPa

Maximum Displacement

2100 L/min

Injection Centrifugal Pump

4 × 3/2 × 3 (Optional)

Priming Centrifugal Pump

RA 6 × 5/ PN 6 × 5 (Optional)

Water-Supply Centrifugal Pump

4 × 3/ 2 × 3 (Optional)

Weight

22000 kg

Size

≈10250 mm×2500 mm×3850 mm

Frequently Asked Questions

What is the auto cement mixing unit used for?

The auto cement mixing unit is a skid or trailer mounted unit that functions to mix highly accurate cement densities during cementing operations. This high-efficiency recirculation mixer is ideal for both onshore and offshore use, and the cement mixing system is the most crucial component in the cementing operation.

How does the automatic cement mixing unit work?

A diesel engine provides power to the hydraulic system, the hydraulic system operates the centrifugal pumps, and a manifold system allows the unit to boost the triplex pumps of a pumping unit. This closed loop keeps slurry density accurate during the cement job.

What are the specifications of the GJC45-21 mixing configuration?

The unit is based on the GJC45-21 cementing unit: Beiben 6 × 4 / 6 × 6 or Shacman 6 × 4 chassis, Cummins KT19-C525 or DDC S60 deck engine, BY400 or Allison OFS4700 gearbox, 600 plunger pump, 45 MPa maximum pressure and 2100 L/min maximum displacement.

Why does cement density accuracy matter?

Accurate cement density is required to achieve the designed slurry weight for zonal isolation. The recirculation mixer measures and corrects density continuously, which improves cement bond quality in both onshore and offshore wells.
