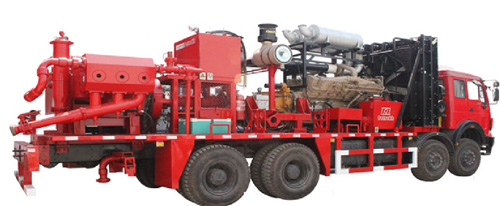

YLC105-1490 Fracturing Truck(2000)

YLC105-1490

YLC105-1490 fracturing truck (2000) belongs to truck mounted fracturing unit used in oil and gas field. It is applicable for various fracturing work in large/medium/small-depth wells. With 3ZB-1490 triplex plunger pumps, the maximum pressure generated is up to 105 MPa. Main components of this fracturing unit are chassis, deck engine, hydraulic transmission, triple plunger pump, high&low pressure manifold and hydraulic/air control system.

Click to enlarge
  • Features

    • 1. 2000/YLC105-1490 truck mounted fracturing unit is suitable for pumping various pumping liquids, including those containing proppants for hydraulic and acidfracturing. Besides, It also works well in pressure testing.

    2. Working security and reliability are ensured due to remote controlling system, data van and network controlling technology.

    3. Double over-pressure protection device is applied.

    Product

    YLC2000 Fracturing Truck (2000 Fracturing Truck)

    Chassis

    Beiben 8 × 4/8 × 8     Optional: BENZ/MAN

    Deck Engine

    Cummins KTA50-G8/MTU12V-4000 (2250 hp)

    Deck Gearbox

    BY2000/Allison S9820M

    Plunger Pump

    2500 Quintuple Plunger Pump

    Maximum Pressure

    105 Mpa

    Weight

    33600 kg

    Size

    11300 mm ×2500 mm×4000 mm

  • Performance Parameters(Motor Rotation Frequency n=1900 r/min)

    • Shift

    Specific Water Cycle

    Displacement (L/min)

    Pressure (MPa)

    Diameter

    4”

    4-1/2”

    5”

    4”

    4-1/2”

    5”

    I

    76

    622

    787

    972

    105

    85

    68.6

    II

    105

    867

    1097

    1335

    92

    73

    58

    III

    129

    1060

    1342

    1657

    76

    60

    47

    IV

    160

    1318

    1668

    2059

    61

    48

    38

    Ⅴ

    179

    1476

    1868

    2307

    54

    43

    34

    Ⅵ

    223

    1837

    2325

    2870

    43

    34

    27

    Ⅶ

    283

    2333

    2952

    3644

    34

    27

    21
