Chemical Unit

Chemical Unit

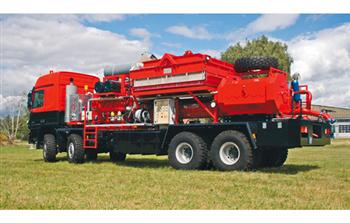

Fracturing chemical mixer truck is a kind of mobile agitation equipment which can be independently used for oil/gas/petroleum exploitation. It can effectively solve problems arising in fracturing, such as undermixing of fracturing-use liquid (for example, the additives are undissolved and covered by water). This frac chemical unit can be used for different kinds of fluids, cement and acid. It includes power system, power material measuring system, manifold system, liquid additive system, mixing system, etc.


  • Features

    • 1. Fracturing chemical mixer truck maintains homogenous slurry of proppants

    2. It can keep solid materials in suspension.

    3. Less energy is used than that by mechanical mixers.

    4. Speed & power adapts to a variety of fluids.

    5. This unit helps scour the tank bottom during cleaning

    6. Vertical circulation can be created immediately in tanks

    7. Extra internal motor supports are unnecessary.

    8. Fracturing chemical mixer truck can mix liquids with large ratio of solids & high viscosities

    9. It can work at any liquid level in the tank.

    10. It can fast achieve desired mixing target.

  • Parameters

    • Product

    8 m3 Fracturing Chemical Mixer Truck

    Chassis

    Beiben 8 × 4/8 × 8  Optional: BENZ/MAN

    Deck Engine

    Cummins KTA19

    Transfer Case

    STIEBEL

    Suction Pump

    5 × 4 × 14 Centrifugal Pump

    Discharge Pump

    8 × 6 × 14 Centrifugal Pump

    Mixing Tank

    10 m3

    Power Material Tank

    2.5 m3

    Weight of Whole Unit

    27930 kg

    Size

    11600 mm ×2500 mm×4000 mm
