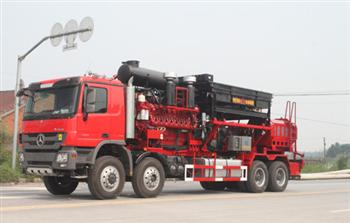

YLC140-2080 Fracturing Pump Truck

YLC140-2080

YLC140-2080 (2800) fracturing pump truck is configured with the 2235 KW (3000 hp) engine and the 2085 KW (2800 hp) quintuple fracturing-use pump, and the maximum of the quintuple pump is up to 140 MPa (20000 psi). In this fracture pump unit, there are many other types of equipment, including chassis, hydraulic transmission, high&low pressure manifolds, hydraulic/air circuit system, network controlling system, etc. Due to high pressure, large power and the ability for continuous work, this fracturing pumptruck meets demands of various hydraulic fracturing and acid fracturing no matter in large-depth or in small-depth wells.

Click to enlarge
  • Features

    • 1. Deck engine features large power; besides, the fan cooling system is driven by the engine on the chassis. In this way, the output power can reach up to 2080 KW (2800 hp).

    2. Reinforced secondary beam and vehicle frame make this fracturing pump truck suitable for the off-road driving, especially for driving on oil fields.

    3. Network controlling makes it convenient to manually or automatically control the individual device or a set of devices.

    4. Wireless satellite communication technology is adopted in data transmission when remotely monitoring working situations.

    5. YLC140-2080 (2800) fracturing pump truck employs multipath automatic security system such as to ensure operation safety.

  • Technical Parameters

    • Product

    YLC140-2080 Fracturing Pump Truck (2800 Fracturing Pump Truck)

    Chassis

    Mercedes-Benz

    Deck Engine

    MTU

    Deck Gearbox

    TWIN

    Plunger Pumper

    Kh2800 Quintuple Plunger Pump

    Maximum Pressure

    140Mpa

    Weight

    1860KW

    Size

    43000KG

  • Performance Parameters(Motor Rotation Frequency n=1900 r/min)

    • Shift

    Specific Water Cycle

    Displacement (L/min)

    Pressure (MPa)

    Diameter

    3-3/4”

    4”

    4-1/2”

    3-3/4”

    4”

    4-1/2”

    I

    67

    486

    553

    700

    140

    123

    97.4

    II

    84

    608

    692

    876

    140

    123

    97.4

    III

    105

    762

    867

    1097

    140

    123

    97.4

    IV

    124

    901

    1025

    1298

    124

    109

    86.2

    V

    156

    1131

    1287

    1629

    99

    87

    68.7

    VI

    195

    1406

    1605

    2031

    74

    70

    55

    VII

    240

    1738

    1977

    2502

    64

    56

    44.7

    VIII

    300

    2172

    2471

    3128

    51.5

    45.3

    35.8
