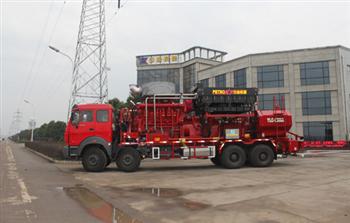

YLC105-1860 Hydraulic Fracturing Truck(2500A)

YLC105-1860

YLC105-1860 hydraulic fracturing truck (2500A) is configured with quintuple plunger pump, which endows this pump truck with large displacement and small pressure fluctuation. It is suitable more various fracturing situations, no matter the well is of large depth or is of small depth. The maximum pressure can reach up to 105 MPa. Main parts of this fracturing pumper are chassis, deck engine, hydromatic transmission, quintuple plunger pump, manifolds, hydraulic/air system and remote control system.

Click to enlarge
  • Features

    • 1. YLC105-1860 hydraulic fracturing truck (2500A) adopts 2500 hp quintuple plunder pump and features large displacement, small pressure fluctuation. Weak shock arises in the whole truck body.

    2. It is applicable for pumping different kinds of liquids in hydraulic and acid fracturing, even when there are poppants within the liquids. Besides, it is available to conduct pressure test.

    3. Fracturing can be controlled by remote controlling system, data van and network controlling technology. In this way, fracturing is safer and more reliable.

    4.2500Ahydraulic fracturing truck is equipped with doal over-pressure protection device.

  • Technical Parameters

    • Product

    YLC105-1860 Fracturing Truck (2500AFracturing Truck)

    Chassis

    Beiben 8 × 4/8 × 8     Optional: BENZ/MAN

    Deck Engine

    CAT3512C/Cummins QSK60

    Deck Gearbox

    CAT TH55-E70/Allison S9825M

    Plunger Pumper

    2500 Quintuple Plunger Pump

    Maximum Pressure

    105 MPa

    Weight

    37000 kg

    Size

    11300 mm ×2500 mm×4000 mm

  • Performance Parameters(Motor Rotation Frequency n=1900 r/min)

    • Shift

    Specific Water Cycle

    Displacement (L/min)

    Pressure (MPa)

    Diameter

    3-3/4”

    4”

    4-1/2”

    3-3/4”

    4”

    4-1/2”

    I

    48

    347

    394

    499

    121

    105

    84.7

    II

    65

    473

    536

    679

    121

    105

    84.7

    III

    88

    642

    728

    922

    121

    105

    84.7

    IV

    121

    875

    993

    1256

    96

    90

    71

    Ⅴ

    163

    1186

    1345

    1702

    70

    66

    52

    Ⅵ

    220

    1596

    1810

    2291

    52

    49

    39

    Ⅶ

    299

    2171

    2462

    3115

    38

    36

    28
