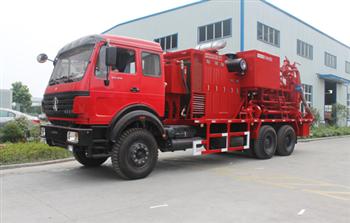

Single Pump Cementing Unit

Single Pump Cementing Unit

Single pump cementing unit is suitable for a variety of fluid pumping and mixing operations in the oilfields. Typical operations include well cementing, well acidizing treatments, hydrojet perforating, solvent pumping, pressure testing and miscellaneous fluid pumping at a large density range. Cementing truck is mainly applied to the land or desert worksites for various cementing applications. It could conduct such jobs as mixing slurry, injecting slurry, replacing slurry, setting and also well clean out and cutting re-injection, etc. This single pump cementing unit is capable of operating during extended pumping operations in rough oilfield environments with ambient temperature ranges of-30°Cto +50°C.

Model RangeGJC40-17 Single Pump Cementing Unit
MountingBeiben 6 × 4/ 6 × 6/ Shacman 6 × 4

Overview

The single pump cementing unit packages one deck engine, transmission, triplex pump and centrifugal pumps on a truck chassis to realize cementing operations with high pressure and large discharge. The GJC40-17 model delivers 40 MPa and 1700 L/min, covering well cementing, acidizing treatments, hydrojet perforating, solvent pumping and pressure testing.

Compositions

Single pump cementing unit includes one deck engine, transmission, triplex pump and centrifugal pumps which can realize the cementing operation with high pressure and large discharge volume. It is manufactured according to our customer needs. Clients can choose from a variety of brands for the engine, transmission and pumps. Each component is selected to provide high performance to the end user in compliance with environmental conditions, topography, service & parts availability and job & service performance.

Advantages of Single Pump Cementing Unit

Main components of the unit are imported from foreign brand-name companies, which greatly enhance its performance. The operation of the unit is realized through the electric system, hydraulic system, pneumatic system and mechanical transmission system. All the systems are controlled through the control panel, which facilitates the user to operate and realizes the high level automation.

Parameters

Product

GJC40-17 Single Pump Cementing Unit

Chassis

Beiben 6 × 4/ 6 × 6/ Shacman 6 × 4

Deck Engine

Cummins KT19-C450/DDC S60

Deck Gearbox

BY400/Allison OFS4700

Plunger Pump

300 Pump

Maximum Pressure

40 MPa

Maximum Displacement

1700 L/min

Injection Centrifugal Pump

4 × 3/2 × 3 (Optional)

Priming Centrifugal Pump

RA 6 × 5/PN 6 × 5 (Optional)

Water-Supply Centrifugal Pump

4 × 3/2 × 3 (Optional)

Weight

22000 kg

Size

≈10250 mm×2500 mm×3850 mm

Typical Single Pump Cementing Unit Product

GJC40-17

Frequently Asked Questions

What operations can the single pump cementing unit perform?

The Petrokh single pump cementing unit is suitable for a variety of fluid pumping and mixing operations in the oilfields. Typical operations include well cementing, well acidizing treatments, hydrojet perforating, solvent pumping and pressure testing.

What are the specifications of the GJC40-17 single pump unit?

The GJC40-17 single pump cementing unit is mounted on a Beiben 6 × 4 / 6 × 6 or Shacman 6 × 4 chassis with a Cummins KT19-C450 or DDC S60 deck engine and BY400 or Allison OFS4700 gearbox. It uses a 300 plunger pump with 40 MPa maximum pressure and 1700 L/min maximum displacement.

How is the single pump cementing unit arranged?

The single pump cementing unit includes one deck engine, transmission, triplex pump and centrifugal pumps which can realize the cementing operation with high pressure and large discharge.

What components are used in the unit?

Main components of the unit are imported from foreign brand-name companies, which greatly enhance its performance. The operation of the unit is realized through the electric system for convenient and reliable control.
